In-depth look at Fortigate's ADVPN - Part I

This is the first part of a series where we will look at Fortigate's ADVPN (Auto Discovery VPN) implementation and how it works. As usual the question - what is ADVPN and why do we need it.

 Let's do an example topology. We have a hub (Central/HQ site) and spoke (Branch site) consisting of 21 nodes (1+20). As this is a hub-and-spoke topology all the inter-site communication goes through Hub/Central site. All the traffic between sites is encrypted by IPSec. Now 21st site comes online. What we will need at least to connect this new spoke with the rest of the network is -

At the HUB -
  • A new IPSec site-to-site tunnel configuration.
  • New dynamic routing configuration so that hub can send and receive routing information to spoke.
  • Firewall rules adjustments.
At the Spoke (new site)
  • A new IPSec site-to-site tunnel configuration.
  • New dynamic routing configuration so that spoke can send and receive routing information to hub.
  • Firewall rules adjustments.

 What if there is a configuration knob so that we can configure the Hub once and for all. That is every time a new spoke is joined to the network, we do not need to do anything at the Hub site, we just configure the spoke site. And yes that is possible by using Fortigate's dial-up IPSec VPN tunnels at the HUB site. In part I we will look at that. And in part II we will look at how to convert this hub-spoke topology, to a full mesh topology (ADVPN) without much configuration efforts.

 All the configuration in this example is done using FortiOS version 6.2. Our example will use Fortigate's new dial-up logic. As there was a major change done by Fortinet how their dial-up IPSec VPN works, I recommend reading the documentation mentioned in the references section.

Topology

 Let's introduce our topology -

ADVPN Physical Topology
We have a hub site and three spoke sites. Our goal is two configure a dial-up IPSec VPN (server) at the Hub so that we do not need to do any configuration when a new Spoke joins to the network. We will just configure IPSec and routing at the spoke site. And that's it. Fortigate's dial-up logic will take care of the rest.

 The IP adressering is given in the table below -

Site
WAN
LAN
IPSec Tunnel
Loopback
Hub1
172.16.0.2/30
192.168.1.1/24
192.168.10.1/24
192.168.0.1/32
Spoke1
172.16.0.6/30
192.168.2.1/24
192.168.10.2/24
192.168.0.2/32
Spoke2
172.16.0.10/30
192.168.3.1/24
192.168.10.3/24
192.168.0.3/32
Spoke3
172.16.0.14/30
192.168.4.1/24
192.168.10.4/24
192.168.0.4/32

Routing

 We will use OSPF as the routing protocol between hub and spokes. We need to understand how our routing topology looks beforehand to understand why we are configuring certain things in OSPF. Below is an example of routing topology -

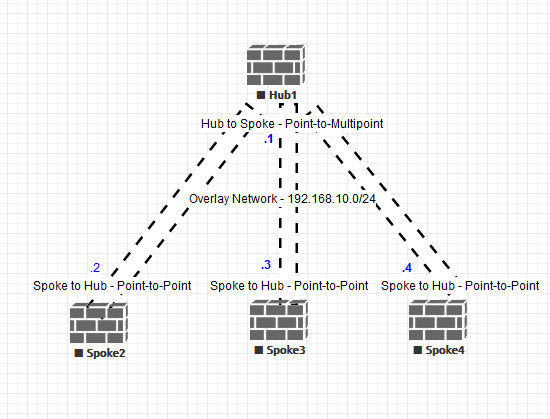

ADVPN Routing Topology
The most important thing here to understand is that the Hub sees the network as point-to-multipoint (Hub has one IPSec tunnel to each Spoke) and each Spoke sees the network as point-to-point (Spoke has IPSec tunnel only to the Hub). To run OSPF over those IPSec tunnels, both Hub and Spoke must find a way to tell each other what are their respective tunnel IP addresses. Fortigate overcomes this limitations by using proprietary adress exchanging mechanism during IPSec phase-1 negotiation (set exchange-interface-ip enable).

 Enough talking, let's start configuring - (as most of things cannot be done from gui, we will configure the required configuration from cli).

Hub1 Configuration

Let's look at Hub1's physical interface and IP address configuration

config system interface
   !!!Lan facing interface
   edit "port7"
        set vdom "root"
        set ip 192.168.1.1 255.255.255.0
        set allowaccess ping
        set type physical
        set description "Lan"
        set alias "Lan"
   next
   !!!Internet facing interface
   edit "port8"
        set vdom "root"
        set ip 172.16.0.2 255.255.255.252
        set allowaccess ping
        set type physical
        set description "Internet"
        set alias "Internet"
   next
   !!!Loopback interface, used for router-id in OSPF
   edit "Loopback"
        set vdom "root"
        set ip 192.168.0.1 255.255.255.255
        set allowaccess ping
        set type loopback
        set description "Loopback"
        set alias "Loopback"
        set role lan
   next
end

Now we will configure the IPSec phase-1 at the Hub1.

config vpn ipsec phase1-interface
    edit "Hub1-Phase1"
        set ike-version 2
        set proposal des-md5
        set dhgrp 5
        set authmethod psk
        set psksecret test123
        set nattraversal disable
        set keylife 86400
        set dpd on-idle
        set dpd-retrycount 3
        set dpd-retryinterval 20
        !!!Internet facing interface
        set interface "port8"
     !!!It is a dynamic (dial-up) tunnel which accepts negotiation from any spokes.
        set type dynamic
        set peertype any
        !!!Activating fortigate's new dial-up logic
        set net-device disable
        !!!To find which tunnel to use when connecting to a spoke
        set tunnel-search nexthop
       !!!No reverse route injection, routing table will be built by routing protocol
        set add-route disable
       !!!During phase-1,the Hub1 exchange it's IPSec tunnel interface IP address with the Spoke.
        set exchange-interface-ip enable
    next
end

Next we will configure IPSec phase-2 at the Hub1.

config vpn ipsec phase2-interface
    edit "Hub1-Phase2"
        set encapsulation tunnel-mode
        set proposal des-md5
        set pfs disable
        set keylife-type seconds
        set keylifeseconds 43200
        set keepalive disable
        !!!Connecting phase-2 with phase-1
        set phase1name "Hub1-Phase1"
    next
end

As we will be running OSPF, we need to assign an IP adress to Hub1's IPSec tunnel interface. We have reserved 192.168.10.0/24 network as our overlay network. Every device participating in dial-up IPSec VPN will get an IP adress from this network for their tunnel interface.

config system interface
    edit "Hub1-Phase1"
        set vdom "root"
        set ip 192.168.10.1 255.255.255.255
        set allowaccess ping
        set type tunnel
        !!!In fortigate remote IP needs to an IP adress from 192.168.10.0/24 network.
        !!!For clarity, in Hub we will use 192.168.10.254/24, an unused IP adress from overlay network.
        !!!And in Spokes we will use Hub's tunnel IP as remote IP.
        set remote-ip 192.168.10.254 255.255.255.0
        set snmp-index 10
        set interface "port8"
    next
end

Now we will configure the firewall policies. Our policy is very simple - we will allow everything from Hub1's LAN to Spoke's LAN and vice versa. Also, we will allow traffic between Spokes which goes through the Hub.

For configuration flexibility we have assigned our interfaces to different zones which are pretty self-explanatory.

config system zone
    edit "Lan-Zone"
        set interface "port7"
    next
    edit "Vpn-Zone"
        set interface "Hub1-Phase1"
    next
    edit "Internet-Zone"
        set interface "port8"
    next
end

config firewall policy
    edit 1
        set srcintf "Lan-Zone"
        set dstintf "Vpn-Zone"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 2
        set srcintf "Vpn-Zone"
        set dstintf "Lan-Zone"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 3
        !!!Allows traffic between spokes which goes through Hub1
        set srcintf "Vpn-Zone"
        set dstintf "Vpn-Zone"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
end

Now we will configure OSPF routing as below (remember Hub's OSPF interface is point-to-multipoint type - Hub1 connects to different Spokes).

config router ospf
    !!!Loopback address is router-id
    set router-id 192.168.0.1
    config area
        edit 0.0.0.0
        next
    end
    config ospf-interface
        edit "Hub1-Phase1"
            !!!Tunnel interface will have some OSPF settings applied to it
            set interface "Hub1-Phase1"
            !!!OSPF network type will be point-to-multipoint
            set network-type point-to-multipoint
            !!!P-to-MP interface has a default hello interval of 30 sec and dead interval of 120 sec
            !!!We will change it to 10 and 40 which is default equivalent of P-to-P interface.
            !!!So, that hello and dead timers are consistent between Hub and Spoke
            set dead-interval 40
            set hello-interval 10
            set mtu-ignore enable
        next
    end
    config network
        edit 1
            !!!Advertising the loopback network
            set prefix 192.168.0.1 255.255.255.255
        next
        edit 2
            !!!Advertising the LAN/inside network
            set prefix 192.168.1.0 255.255.255.0
        next
        edit 3
            !!!Advertising the IPSec VPN/Overlay network
            set prefix 192.168.10.0 255.255.255.0
        next
    end
end

Spoke2 configuration

As all the spokes has similar configuration, we will only show the configuration at Spoke2. For other spokes only the IP addresses changes.

Let's look at Spoke2's physical interface and IP address configuration -

config system interface
   !!!Lan facing interface
   edit "port7"
        set vdom "root"
        set ip 192.168.2.1 255.255.255.0
        set allowaccess ping
        set type physical
        set description "Lan"
        set alias "Lan"
   next
   !!!Internet facing interface
   edit "port8"
        set vdom "root"
        set ip 172.16.0.6 255.255.255.252
        set allowaccess ping
        set type physical
        set description "Internet"
        set alias "Internet"
   next
   !!!Loopback interface, used for router-id in OSPF
   edit "Loopback"
        set vdom "root"
        set ip 192.168.0.2 255.255.255.255
        set allowaccess ping
        set type loopback
        set description "Loopback"
        set alias "Loopback"
        set role lan
   next
end

Now we will configure the IPSec phase-1 at the Spoke2.

config vpn ipsec phase1-interface
    edit "Spoke2-Phase1"
        set ike-version 2
        set proposal des-md5
        set dhgrp 5
        set authmethod psk
        set psksecret test123
        set nattraversal disable
        set keylife 86400
        set dpd on-idle
        set dpd-retrycount 3
        set dpd-retryinterval 20
        !!!Internet facing interface
        set interface "port8"
        !!!A spoke connects only to the Hub via IPSec.
        !!!So, it will be static IPSec tunnel where it will connect to Hub's internet facing IP address.
        set type static
        set peertype any
        set remote-gw 172.16.0.2
        !!!As the spoke creates only P-to-P tunnel, no need to activate fortigate's new dial-up logic
        set net-device enable
        !!!During phase-1,the Spoke exchange it's IPSec tunnel interface IP address with the Hub.
        set exchange-interface-ip enable
   next
end

Next we will configure IPSec phase-2 at the Spoke2.

config vpn ipsec phase2-interface
    edit "Spoke2-Phase2"
        set encapsulation tunnel-mode
        set proposal des-md5
        set pfs disable
        set keylife-type seconds
        set keylifeseconds 43200
        !!!Connecting phase-2 with phase-1
        set phase1name "Spoke2-Phase1"
        !!!The spoke will initiate the IPSec negotiation.
        !!!The hub does not know the internet facing IP adress of the spokes beforehand.
        !!!So, it is the responsibility of the spokes to initiate the IPSec negotiation.
        !!!The hub acts as a responder in IPSec negotiation.
        set auto-negotiate enable
    next
end

As we will be running OSPF, we need to assign an IP adress to Spoke2's IPSec tunnel interface. We have reserved 192.168.10.0/24 network as our overlay network and Spoke2 will get an IP adress from this network.

config system interface
 edit "Spoke2-Phase1"
        set vdom "root"
        set ip 192.168.10.2 255.255.255.255
        set allowaccess ping
        set type tunnel
        !!!Remote IP is set to Hub1's tunnel IP address
        set remote-ip 192.168.10.1 255.255.255.0
        set interface "port8"
    next
end

Now we will configure the firewall policies. Our policy is very simple - we will allow everything from Spoke2's LAN to Hub1's LAN or other Spokes LAN and vice versa. For configuration flexibility we have assigned our interfaces to different zones which are pretty self-explanatory.

config system zone
    edit "Lan-Zone"
        set interface "port7"
    next
    edit "Vpn-Zone"
        set interface "Spoke2-Phase1"
    next
    edit "Internet-Zone"
        set interface "port8"
    next
end

config firewall policy
    edit 1
        set srcintf "Lan-Zone"
        set dstintf "Vpn-Zone"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 2
        set srcintf "Vpn-Zone"
        set dstintf "Lan-Zone"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
end

Now we will configure OSPF routing as below for Spoke2. By default tunnel interface created by IPSec is of type point-to-point. So, for Spoke2 we don't need to specify explicitly that OSPF sees tunnel interface as point-to-point. But we will do that here for configuration clarity and consistency.

config router ospf
    !!!Loopback address is router-id
    set router-id 192.168.0.2
    config area
        edit 0.0.0.0
        next
    end
    config ospf-interface
        !!!Tunnel interface will have some OSPF settings applied to it
        edit "Spoke2-Phase1"
            set interface "Spoke2-Phase1"
            !!!OSPF network type will be point-to-point
            set network-type point-to-point
            set dead-interval 40
            set hello-interval 10
            set mtu-ignore enable
        next
    end
    config network
        edit 1
            !!!Advertising the loopback network
            set prefix 192.168.0.2 255.255.255.255
        next
        edit 2
            !!!Advertising the LAN/inside network
            set prefix 192.168.2.0 255.255.255.0
        next
        edit 3
            !!!Advertising the IPSec VPN/Overlay network
            set prefix 192.168.10.0 255.255.255.0
        next
    end
end

That's it. We are done with Spoke2's configuration. Spoke3 and Spoke4 are also configured similarly.

Verification

 From Hub1 if we use the below command we will see the following output. The output is very long, we have truncated the output with necessary information only.

Hub1 # diagnose vpn tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=Hub1-Phase1_0 ver=2 serial=2 172.16.0.2:0->172.16.0.6:0 dst_mtu=1500
bound_if=10 lgwy=static/1 tun=intf/0 mode=dial_inst/3 encap=none/672 options[02a0]=search-nexthop rgwy-chg frag-rfc  run_state=1 accept_traffic=1

  parent=Hub1-Phase1 index=0
!!!Tunnel to Spoke2 with interface name Hub1-Phase1 and index 0
------------------------------------------------------
name=Hub1-Phase1_1 ver=2 serial=3 172.16.0.2:0->172.16.0.10:0 dst_mtu=1500
bound_if=10 lgwy=static/1 tun=intf/0 mode=dial_inst/3 encap=none/672 options[02a0]=search-nexthop rgwy-chg frag-rfc  run_state=1 accept_traffic=1

  parent=Hub1-Phase1 index=1
!!!Tunnel to Spoke3 with interface name Hub1-Phase1 and index 1
------------------------------------------------------
name=Hub1-Phase1_2 ver=2 serial=4 172.16.0.2:0->172.16.0.14:0 dst_mtu=1500
bound_if=10 lgwy=static/1 tun=intf/0 mode=dial_inst/3 encap=none/672 options[02a0]=search-nexthop rgwy-chg frag-rfc  run_state=1 accept_traffic=1

  parent=Hub1-Phase1 index=2
!!!Tunnel to Spoke4 with interface name Hub1-Phase1 and index 2
------------------------------------------------------
name=Hub1-Phase1 ver=2 serial=1 172.16.0.2:0->0.0.0.0:0 dst_mtu=0
bound_if=10 lgwy=static/1 tun=intf/0 mode=dialup/2 encap=none/544 options[0220]=search-nexthop frag-rfc  accept_traffic=1

 proxyid_num=0 child_num=3 refcnt=21 ilast=1669 olast=1669 ad=/0
stat: rxp=597 txp=621 rxb=72896 txb=51624
dpd: mode=on-idle on=0 idle=20000ms retry=3 count=0 seqno=0
natt: mode=none draft=0 interval=0 remote_port=0
run_tally=3
ipv4 route tree:
172.16.0.6 0
172.16.0.10 1
172.16.0.14 2
192.168.10.2 0
!!!OSPF finds Spoke1's tunnel IP adress by Hub1-Phase1 with index number 0
192.168.10.3 1
!!!OSPF finds Spoke2's tunnel IP adress by Hub1-Phase1 with index number 1
192.168.10.4 2
!!!OSPF finds Spoke3's tunnel IP adress by Hub1-Phase1 with index number 2

 Hub1 # get router info ospf interface
Hub1-Phase1 is up, line protocol is up
  Internet Address 192.168.10.1/24, Area 0.0.0.0, MTU 1446
  Process ID 0, VRF 0, Router ID 192.168.0.1, Network Type POINTOMULTIPOINT, Cost: 100
  Transmit Delay is 1 sec, State Point-To-Point
  Timer intervals configured, Hello 10.000, Dead 40, Wait 40, Retransmit 5
    Hello due in 00:00:08
  Neighbor Count is 3, Adjacent neighbor count is 3
  Crypt Sequence Number is 10
  Hello received 661 sent 225, DD received 27 sent 26
  LS-Req received 6 sent 6, LS-Upd received 22 sent 34
  LS-Ack received 49 sent 0, Discarded 0

Hub1 # get router info routing-table ospf
Routing table for VRF=0
!!! 192.168.0.X are Spokes's loopback network
O       192.168.0.2/32 [110/200] via 192.168.10.2, Hub1-Phase1, 00:22:25
O       192.168.0.3/32 [110/200] via 192.168.10.3, Hub1-Phase1, 00:20:55
O       192.168.0.4/32 [110/200] via 192.168.10.4, Hub1-Phase1, 00:20:45
!!! 192.168.X.0/24 are Spoke's LAN networks
O       192.168.2.0/24 [110/101] via 192.168.10.2, Hub1-Phase1, 00:22:25
O       192.168.3.0/24 [110/101] via 192.168.10.3, Hub1-Phase1, 00:20:55
O       192.168.4.0/24 [110/101] via 192.168.10.4, Hub1-Phase1, 00:00:19

Now verification from Spoke2. It has only one IPSec tunnel to Hub1.

 Spoke2 # diagnose vpn tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=Spoke2-Phase1 ver=2 serial=1 172.16.0.6:0->172.16.0.2:0 dst_mtu=1500
bound_if=10 lgwy=static/1 tun=intf/0 mode=auto/1 encap=none/528 options[0210]=create_dev frag-rfc  accept_traffic=1

 Spoke2 # get router info ospf interface
Spoke2-Phase1 is up, line protocol is up
  Internet Address 192.168.10.2/24, Area 0.0.0.0, MTU 1446
  Process ID 0, VRF 0, Router ID 192.168.0.2, Network Type POINTOPOINT, Cost: 100
  Transmit Delay is 1 sec, State Point-To-Point
  Timer intervals configured, Hello 10.000, Dead 40, Wait 40, Retransmit 5
    Hello due in 00:00:07
  Neighbor Count is 1, Adjacent neighbor count is 1
  Crypt Sequence Number is 10
  Hello received 260 sent 262, DD received 9 sent 7
  LS-Req received 2 sent 2, LS-Upd received 31 sent 8
  LS-Ack received 0 sent 20, Discarded 1

 Spoke2 # get router info routing-table ospf
Routing table for VRF=0
!!! 192.168.0.X are loopback networks
O       192.168.0.1/32 [110/200] via 192.168.10.1, Spoke2-Phase1, 00:29:45
O       192.168.0.3/32 [110/300] via 192.168.10.1, Spoke2-Phase1, 00:28:14
O       192.168.0.4/32 [110/300] via 192.168.10.1, Spoke2-Phase1, 00:28:04
!!! 192.168.X.0/24 are Hub1's and Spoke's LAN networks
O       192.168.1.0/24 [110/101] via 192.168.10.1, Spoke2-Phase1, 00:29:45
O       192.168.3.0/24 [110/201] via 192.168.10.1, Spoke2-Phase1, 00:28:14
O       192.168.4.0/24 [110/201] via 192.168.10.1, Spoke2-Phase1, 00:07:24
O       192.168.10.1/32 [110/100] via 192.168.10.1, Spoke2-Phase1, 00:29:45

 Remarks

 In this Part I, we had a design goal that we will minimize the configuration tasks on a hub-and-spoke topology. We have achieved that by creating a dial-up IPSec tunnel in Hub1. So, now when we add a new spoke in the network, we do not need to configure anything on the Hub1. We just need to configure the new Spoke that is added to the network.

The routing topology is that Spoke to Spoke communication is done through Hub which is normal for hub-and-spoke topology. Isn't it nice if we can create a fully mesh network topology where a spoke can talk with another spoke without going to the hub first. And yes that is perfectly possible in our current setup. We will just add one single configuration command in Hub and every Spoke, then we will get a network which is fully meshed logically by IPSec tunnels and that is fortigate's ADVPN.

In part II - we will just configure that (ADVPN).

 References
1. Technical Note: Fortinet Auto Discovery VPN (ADVPN)

Location: Sundsvall, Sweden

Comments

  1. AneesJune 18, 2020 at 2:06 AM

    Thank you for explaining the concepts with example lab.

    Would you mind sharing the Router configuration with us as well.

    ReplyDelete
    Replies
    1. Shariful HoqueJune 18, 2020 at 6:54 AM

      If you are looking for router1 configuration, there is nothing in it special. It has 4 interface configured with /30 mask. And fortigates are using it as default gateway so that it can run ipsec towards the hub. In router it is just four /30 connected routes, nothing else.

      Delete
    2. AneesJune 18, 2020 at 9:13 AM

      That's what I have configured but the verification is not giving any result for ospf.

      I will reconfigure it and let you know.

      Delete
    3. Shariful HoqueJune 18, 2020 at 11:07 AM

      First verify local connectivity -

      For example - ping from spoke2 to hub1 over that 172.16.0.6 to 172.16.0.2.
      Do not forget to configure a default route to router1 in fortigate.

      Then your tunnel addressing in fortigate must be like this -

      edit "Hub1-Phase1"
      set ip 192.168.10.1 255.255.255.255
      set remote-ip 192.168.10.254 255.255.255.0

      Remote IP mask must be /24, otherwise OSPF will not work.

      And also careful fortigate is firewall, so necessary firewall rules must be in place. For testing I recommend just disable firewall with an any any allow rule.


      Delete

Post a Comment

Popular posts from this blog

Fortigate firewall AAA Configuration for management with TACACS+ protocol and Cisco ISE

In this blog I will write about how to implement AAA services in Fortigate firewalls using Cisco ISE as an authentication server with TACACS+ protocol. First good to know our limitations. AAA means - Authentication (supported by ISE TACACS+), Authorization (partially supported by ISE TACACS+; Fortigate implements Admin-Profiles; so what a user can/cannot do is defined locally in the firewall with "Admin Profiles"; ISE just instructs the firewall to allocate one of those profiles), Accounting (not supported; instead configure syslog to get accounting data, Fortigate firewalls generate syslog messages for configuration changes made by a user). Let's jump to our configuration. Our topology is very simple; one Fortigate firewall and Cisco ISE server connected with the same management network which looks like below -  01 - Network Topology We have a management network 192.168.199.0/24. The firewall is at  .230  and Cisco ISE is at  .49  IP address. We are running...
Read more

Stacking switches Part - VI (Dell OS10 VLT - Virtual Link Trunking)

In this blog I will configure MLAG (multi chassis link aggregation) for Dell OS10 switches. As every other vendor choses a fancy name of their implementation of MLAG; Dell is no exception to this. Dell calls their implementation VLT - Virtual Link Trunking . Let's look at our network topology - Two Dell OS10 switches will run peering between them and will run VLT/MLAG between them. Two Debian 10 linux machine will be connected with LACP bonding with both switches. They will simulate the client connection. Our topology looks like below - 01 - Dell OS10 VLT Topology Let's look at some terminology before configuration - VLT peer – The two switches participating in VLT are peer to each other. In a VLT domain a maximum of two switches are allowed. VLT interconnect (VLTi) – VLTi synchronizes state information between VLT peers. It synchronizes layer 2 and layer 3 control-plane information. These state/control-plane information includes MAC table, ARP table, IPv6 neighbors etc. VLT ...
Read more

Network device configuration management with Oxidized (Basic)

I always like to work with open source tools. As a network engineer, we need to maintain a device configuration management system where we take backup of configuration for different networking devices like routers, switches, firewalls etc. We want to have our backups ready so that we can restore a device configuration when a device fails or replace with new one or for auditing purpose to track recent configuration changes. Today I will talk about such a open source tools named - Oxidized. Interested readers can have a look at it's GitHub page . It is a network configuration management tool with support for diverse networking equipments. Oxidized is developed with programming language Ruby. It is very configurable, extensible and can be integrated with management tools like Librenms . I will do a two part blog about Oxidized. In this part I will cover basic setup of Oxidized and start taking configuration backup of networking equipments. Network Topology Our topology l...
Read more
