IPSec Site-To-Site VPN between Fortigate and Cisco Router

Today I will talk about how to setup a IPSec Site-to-site between a Fortigate firewall and Cisco IOS router. Our network topology looks like this -

IPSec Site-to-Site VPN

All the devices are configured with necessary IP addresses according to the network diagram. Traffic between 192.168.10.0/24 and 192.168.20.0/24 will travel via IPSec tunnel. The tunnel is created over the 172.16.51.0/24 network. In this example the tunnel endpoints are in the same network. In real life they are almost always in different networks controlled by different companies.

We will start configuring the Cisco IOS router first.

Creating isakmp policy (phase 1)

crypto isakmp policy 10
 hash md5
 encryption des
 authentication pre-share
 group 5

Here we are defining our policy for phase 1 which are -

• Encryption - DES
• Authentication - MD5
• D-H group - DH5
• Authentication Method - pre-shared key

Defining pre-shared key and peer

crypto isakmp key juniper address 172.16.51.1

The pre-shared key for the phase 1 and peer ip address is defined by the above command.

Creating IPSec policy (phase 2)

crypto ipsec transform-set myset esp-des esp-md5-hmac

 mode tunnel

In phase 2, we are using

• Encryption - DES
• Authentication - MD5

Connecting phase 1 & 2

We have created a access list defining the networks which are reachable over the IPSec tunnel. Here 192.168.20.0/24 is the local network and 192.168.10.0/24 is the remote network. When traffic flows between 192.168.20/24 and 192.168.10.0/24 networks, it will travel through the tunnel.

access-list 100 permit ip 192.168.20.0 0.0.0.255 192.168.10.0 0.0.0.255

Now we will connecting phase 1 and 2 by using a crypto map. Cryptomap is the secret sauce which glues everything together.

crypto map mymap 10 ipsec-isakmp

 set peer 172.16.51.1

 set transform-set myset

 set pfs group5

 match address 100

Applying cryptomap to interface

The last stage is to apply the cryptomap to the outgoing interface over which the tunnel will be brought up.

interface Ethernet0/0

 crypto map mymap

In our case, it is eth0/0 in Cisco router. It means that when traffic from 192.168.20.0/24 to 192.168.10.0/24 will travel over eth0/0, the IPsec tunnel will be brought up by the router.

Creating necessary route

We also need to create the necessary static route to reach the remote network.

ip route 192.168.10.0 255.255.255.0 Ethernet0/0 172.16.51.1

Because of the cryptomap applied in the previous step, when the traffic is routed towards eth0/0 interface, the interface will start the procedure to bring up the tunnel.

Now we will start configuring the Fortigate firewall. We have created a custom tunnel. In this case defining tunnels, necessary firewall policies and network routes - everything needs to be defined manually.

Configuring phase 1 & 2 in Fortigate

Defining remote peer

In the above figure, we have defined 172.16.51.2 (Cisco router) as our remote peer which is reachable via interface port2.

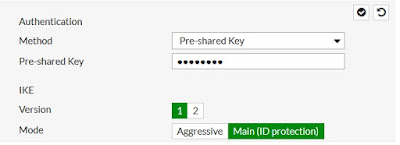

Defining pre-shared key

Now we define our pre-shared key, ike version etc. in the above picture.

Defining phase 1 encryption and authentication

We define our encryption and authentication algorithms for phase 1 according to the picture above.

IPSec (Phase 2) selectors

All the necessary information for phase 2 - local/remote networks, encryption, authentication, PFS group etc. is selected in the above picture.

Now we are done with defining out IPSec tunnel.

Creating firewall policy

Firewall policy

We have defined two policy. One is for incoming traffic and other is for outgoing traffic. In port3 our local network (192.168.10.0/24) is connected. So, traffic coming from source interface port3, source network 192.168.10.0/24 will be allowed to destination interface ipsec-direct (IPSec interface), destination network 192.168.20.0/24. The other policy is just opposite in direction to allow incoming traffic.

Creating route

Static route for tunnel

We have defined a static route which means that traffic to 192.168.20.0/24 will be routed over via ipsec-direct (our tunnel interface) interface.

Verification and troubleshooting

We will try to ping PC01(192.168.10.2) from PC02 (192.168.20.2). A successful ping means the traffic is flowing over the IPSec tunnel.

PC02> ping 192.168.10.2

84 bytes from 192.168.10.2 icmp_seq=1 ttl=62 time=2.336 ms

84 bytes from 192.168.10.2 icmp_seq=2 ttl=62 time=1.667 ms

84 bytes from 192.168.10.2 icmp_seq=3 ttl=62 time=1.571 ms

84 bytes from 192.168.10.2 icmp_seq=4 ttl=62 time=1.455 ms

Let's check the status of our tunnel (phase 1) in Cisco router

Router#show crypto isakmp sa detail

Codes: C - IKE configuration mode, D - Dead Peer Detection

       K - Keepalives, N - NAT-traversal

       T - cTCP encapsulation, X - IKE Extended Authentication

       psk - Preshared key, rsig - RSA signature

       renc - RSA encryption

IPv4 Crypto ISAKMP SA

C-id  Local           Remote          I-VRF  Status Encr Hash   Auth DH Lifetime Cap.

1002  172.16.51.2     172.16.51.1            ACTIVE des  md5    psk  5  23:18:27

       Engine-id:Conn-id =  SW:2

From above we can see that remote peer is 172.16.51.1, status is active. We are using psk (pre-shared key), des, md5 and dh5 as we have configured above.

Let's check the status of our tunnel (phase 2) in Cisco router

Router#show crypto ipsec sa

interface: Ethernet0/0

    Crypto map tag: mymap, local addr 172.16.51.2

   protected vrf: (none)

   local  ident (addr/mask/prot/port): (192.168.20.0/255.255.255.0/0/0)

   remote ident (addr/mask/prot/port): (192.168.10.0/255.255.255.0/0/0)

   current_peer 172.16.51.1 port 500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 5, #pkts encrypt: 5, #pkts digest: 5

    #pkts decaps: 5, #pkts decrypt: 5, #pkts verify: 5

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 0, #recv errors 0

     local crypto endpt.: 172.16.51.2, remote crypto endpt.: 172.16.51.1

     plaintext mtu 1446, path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0

     current outbound spi: 0xBB607876(3143661686)

     PFS (Y/N): Y, DH group: group14

     inbound esp sas:

      spi: 0xAE767792(2926999442)

        transform: esp-des esp-md5-hmac ,

        in use settings ={Tunnel, }

        conn id: 3, flow_id: SW:3, sibling_flags 80000040, crypto map: mymap

        sa timing: remaining key lifetime (k/sec): (4264235/928)

        IV size: 8 bytes

        replay detection support: Y

        Status: ACTIVE(ACTIVE)

We can see all the relevant information like local/remote peer, local/remote network, esp settings and number of encrypted packets etc.

If we try the same thing from the fortigate firewall, here "ipsec-direct" is the name of our tunnel.

Below is the information about, phase 1 -

FortiGate # get vpn ike gateway ipsec-direct

vd: root/0
name: ipsec-direct
version: 1
interface: port2 4
addr: 172.16.51.1:500 -> 172.16.51.2:500
created: 408s ago
IKE SA  created: 1/1  established: 1/1  time: 3520/3520/3520 ms
IPsec SA  created: 1/1  established: 1/1  time: 30/30/30 ms

  id/spi: 0 b255068bf7df608e/a77523290d197542
  direction: initiator
  status: established 408-405s ago = 3520ms
  proposal: des-md5
  key: de4c7b53c6f96992
  lifetime/rekey: 86400/85694
  DPD sent/recv: 00000000/00000000

Then information about phase 2 -

FortiGate # get vpn ipsec tunnel name ipsec-direct

gateway
  name: 'ipsec-direct'
  type: route-based
  local-gateway: 172.16.51.1:0 (static)
  remote-gateway: 172.16.51.2:0 (static)
  mode: ike-v1
  interface: 'port2' (4)
  rx  packets: 14  bytes: 1904  errors: 0
  tx  packets: 14  bytes: 1176  errors: 1
  dpd: on-demand/negotiated  idle: 20000ms  retry: 3  count: 0
  selectors
    name: 'ipsec-direct'
    auto-negotiate: disable
    mode: tunnel
    src: 0:192.168.10.0/255.255.255.0:0
    dst: 0:192.168.20.0/255.255.255.0:0
    SA
      lifetime/rekey: 3600/2847
      mtu: 1446
      tx-esp-seq: f
      replay: enabled
      inbound
        spi: f31b1e15
        enc:     des  95d335644f2eb107
        auth:    md5  f15a30188cc7ed844d4896778aada8a4
      outbound
        spi: 90600d6c
        enc:     des  2633cbefd25fd37b
        auth:    md5  1ea8cf3bb0a6b7c65ea76d10bb2b7306


Let's do some debugging now -

In Cisco router, we want to debug the phase 1 (isakmp). We will apply some filter first which defines which tunnel we want to debug.

Router#debug crypto condition peer ipv4 172.16.50.1
Router#debug crypto isakmp

The first command filters out that we want to debug only the tunnel established with peer 172.16.50.1 (fortigate). Then we turn on the debugging with the second command. Following is the debug output when phase 1 is up (important information is marked in red) -

Router#
*Apr 19 14:13:45.091: ISAKMP (1002): received packet from 172.16.51.1 dport 500 sport 500 Global (R) QM_IDLE
*Apr 19 14:13:45.091: ISAKMP: set new node 301106298 to QM_IDLE
*Apr 19 14:13:45.091: ISAKMP:(1002): processing HASH payload. message ID = 301106298
*Apr 19 14:13:45.091: ISAKMP:(1002): processing SA payload. message ID = 301106298
*Apr 19 14:13:45.091: ISAKMP:(1002):Checking IPSec proposal 1
*Apr 19 14:13:45.091: ISAKMP: transform 1, ESP_DES
*Apr 19 14:13:45.091: ISAKMP:   attributes in transform:
*Apr 19 14:13:45.091: ISAKMP:      SA life type in seconds
*Apr 19 14:13:45.091: ISAKMP:      SA life duration (basic) of 43200
*Apr 19 14:13:45.091: ISAKMP:      encaps is 1 (Tunnel)
*Apr 19 14:13:45.091: ISAKMP:      authenticator is HMAC-MD5
*Apr 19 14:13:45.091: ISAKMP:      group is 14
*Apr 19 14:13:45.091: ISAKMP:(1002):atts are acceptable.
*Apr 19 14:13:45.091: ISAKMP:(1002): processing NONCE payload. message ID = 301106298
*Apr 19 14:13:45.091: ISAKMP:(1002): processing KE payload. message ID = 301106298
*Apr 19 14:13:45.103: ISAKMP:(1002): processing ID payload. message ID = 301106298
*Apr 19 14:13:45.103: ISAKMP:(1002): processing ID payload. message ID = 301106298
*Apr 19 14:13:45.103: ISAKMP:(1002):QM Responder gets spi
*Apr 19 14:13:45.103: ISAKMP:(1002):Node 301106298, Input = IKE_MESG_FROM_PEER, IKE_QM_EXCH
*Apr 19 14:13:45.103: ISAKMP:(1002):Old State = IKE_QM_READY  New State = IKE_QM_SPI_STARVE
*Apr 19 14:13:45.103: ISAKMP:(1002):Node 301106298, Input = IKE_MESG_INTERNAL, IKE_GOT_SPI
*Apr 19 14:13:45.103: ISAKMP:(1002):Old State = IKE_QM_SPI_STARVE  New State = IKE_QM_IPSEC_INSTALL_AWAIT
*Apr 19 14:13:45.104: ISAKMP:(1002):Received IPSec Install callback... proceeding with the negotiation
*Apr 19 14:13:45.104: ISAKMP:(1002):Successfully installed IPSEC SA (SPI:0x102069EA) on Ethernet0/0
*Apr 19 14:13:45.104: ISAKMP:(1002): sending packet to 172.16.51.1 my_port 500 peer_port 500 (R) QM_IDLE


Now lets's debug in fortigate. Here we will also filter only the tunnel with peer ip 172.16.51.2 (Cisco).

FortiGate # diagnose vpn ike log-filter dst-addr4 172.16.51.2
FortiGate # diagnose debug application ike -1
FortiGate # diagnose debug enable

Let's look at the important output from the debug in fortigate, the important information is marked in red -

018-04-18 10:17:54.973854 ike 0:ipsec-direct:1: received p2 notify type RESPONDER-LIFETIME
2018-04-18 10:17:54.975167 ike 0:ipsec-direct:1:ipsec-direct:29: responder selectors 0:192.168.10.0/255.255.255.0:0->0:192.168.20.0/255.255.255.0:0
2018-04-18 10:17:54.977240 ike 0:ipsec-direct:1:ipsec-direct:29: my proposal:
2018-04-18 10:17:54.978379 ike 0:ipsec-direct:1:ipsec-direct:29: proposal id = 1:
2018-04-18 10:17:54.979556 ike 0:ipsec-direct:1:ipsec-direct:29:   protocol id = IPSEC_ESP:
2018-04-18 10:17:54.980808 ike 0:ipsec-direct:1:ipsec-direct:29:   PFS DH group = 14
2018-04-18 10:17:54.982030 ike 0:ipsec-direct:1:ipsec-direct:29:      trans_id = ESP_DES
2018-04-18 10:17:54.983246 ike 0:ipsec-direct:1:ipsec-direct:29:      encapsulation = ENCAPSULATION_MODE_TUNNEL
2018-04-18 10:17:54.984815 ike 0:ipsec-direct:1:ipsec-direct:29:         type = AUTH_ALG, val=MD5
2018-04-18 10:17:54.985986 ike 0:ipsec-direct:1:ipsec-direct:29: incoming proposal:
2018-04-18 10:17:54.987074 ike 0:ipsec-direct:1:ipsec-direct:29: proposal id = 1:
2018-04-18 10:17:54.988072 ike 0:ipsec-direct:1:ipsec-direct:29:   protocol id = IPSEC_ESP:
2018-04-18 10:17:54.989341 ike 0:ipsec-direct:1:ipsec-direct:29:   PFS DH group = 14
2018-04-18 10:17:54.990478 ike 0:ipsec-direct:1:ipsec-direct:29:      trans_id = ESP_DES
2018-04-18 10:17:54.991639 ike 0:ipsec-direct:1:ipsec-direct:29:      encapsulation = ENCAPSULATION_MODE_TUNNEL
2018-04-18 10:17:54.993152 ike 0:ipsec-direct:1:ipsec-direct:29:         type = AUTH_ALG, val=MD5

Now we are at the end of the article. I hope it will help somebody who tries to make a manual IPSec tunnel from a fortigate firewall. Most of the examples I found was running a wizard from fortigate which does not breaks up the things like making necessary policies, creating static routes etc.


Further reading and reference -

1. Fortigate IPSec VPN Guide
2. Cisco configuring IPSec Network Security
